Tutorial: Making a `gopher-buckets` entry in the FACTS-module-registry¶

This tutorial demonstrates how to write an entry in the facts-module-registry for a new module (If you're not familiar with the module registry, we recommend checking out the FACT-sealevel Overview page). We'll continue the example module we used in the previous tutorial and write an entry to add the gopher-buckets module to the FACTS-module-registry.

An entry in the module registry is a directory containing a single YAML file. The YAML file functions as a 'calling card' of the module including the versioned container image holding the module software, and information about input files and arguments, any files written by the module, and how it interacts with other modules in the FACTS2 ecosystem.

Preparation¶

Before writing a module YAML, we need the following pieces in place: - A container image of the working module CLI application. (ie. the end point of the previous tutorial) - The output of the module's --help command. Every flag in the CLI command will have its own entry as an argument in the module YAML. - The names of the input files used in the module. These must be set (and must match the filenames used in the publicly archived module input data)

1. Clone facts-module-registry repo¶

We want to make an addition to the FACTS-module-registry. To do that we'll clone the repo, add our work on a feature branch and then open a PR in FACTS-module-registry.

Clone the repo:

git clone git@github.com:fact-sealevel/facts-module-registry.git

Create a new branch for this work: fmr_git_branch

2. Create an entry for the module¶

Once you've cloned the FACTS-module-registry repository and moved to a feature branch, create a new directory for the module in the repo root next to the directories for other FACTS modules.

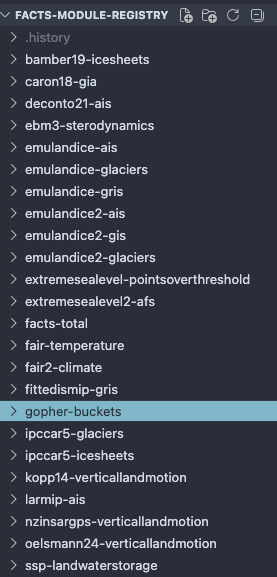

fmr_directories — Screen shot of directories for each module in FACTS-module-registry

3. Create an empty module YAML file¶

In the gopher-buckets directory, we'll create the actual entry, a yaml file called gopher_buckets_module.yaml. This is where we will fill in all of the information about our module. It is important that the module YAML adheres to a specific structure. For examples, you can see any of the entries already in the module registry.

Start with the empty module yaml available here

Copy & paste this outline into the file just created.

4. Complete module YAML file¶

Starting with the empty module YAML, fill in information about gopher-buckets.

Preamble¶

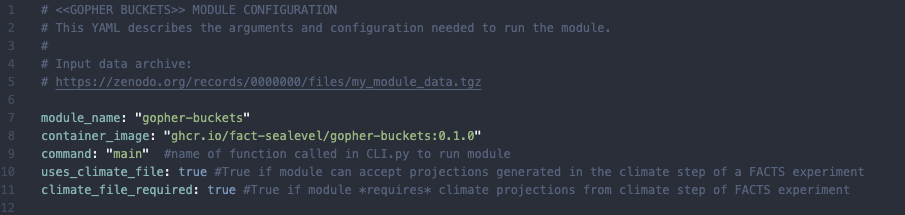

Replace placeholders with our module name so that the top of the module YAML looks like this:

module_yaml_top

Warning

We did not issue a first release of the gopher-buckets module in the last tutorial, so line 8 is not correct. To reference the container of tagged version of our module, it must have a release. We will provide update instructions detailing these steps soon.

Arguments section¶

In the arguments section, there is an entry for every flag that is passed to the module CLI. They are divided into sections: "top-level", "options", "fingerprint_params","inputs", and "outputs". You can read more about the different sections in the About Module YAML Files page. What is important to know right now is that each entry must have at least the following fields:

- name: "flag_name" # corresponds to name of CLI flag. "flag_name" becomes --flag-name
  type: #type of arg: str | int | float | bool | file
  source:

source tells FEB where to read for this field from when it creates and pre-populates an experiment config file. If module_inputs, value comes from the module yaml (this file), if metadata, value comes from args passed to the FEB CLI command, setup-experiment.

Volumes section¶

The final section of the module YAML lists any named bind mounts that are referenced in the arguments passed to the module. If an entry in the inputs or outputs sub-sections of the arguments section contains mount.volume, it must be listed as a key here. The values, host_path, container_path, and help instruct FEB how to resolve the host and mounted paths and pass the help message describing the volume to the experiment configuration file.

Open a Pull Request in FACTS-module-registry¶

Once you have completed the module YAML file, open a PR in the FACTS-module-registry repo. A maintainer will review it. In the future, we hope to implement a tool to automatically check/validate new module yaml entries.
